Power Management System Integration – Gas Processing Plant
Comprehensive PMS integration for gas processing facility with redundant PLC architecture and advanced synchronization systems.
Project Overview

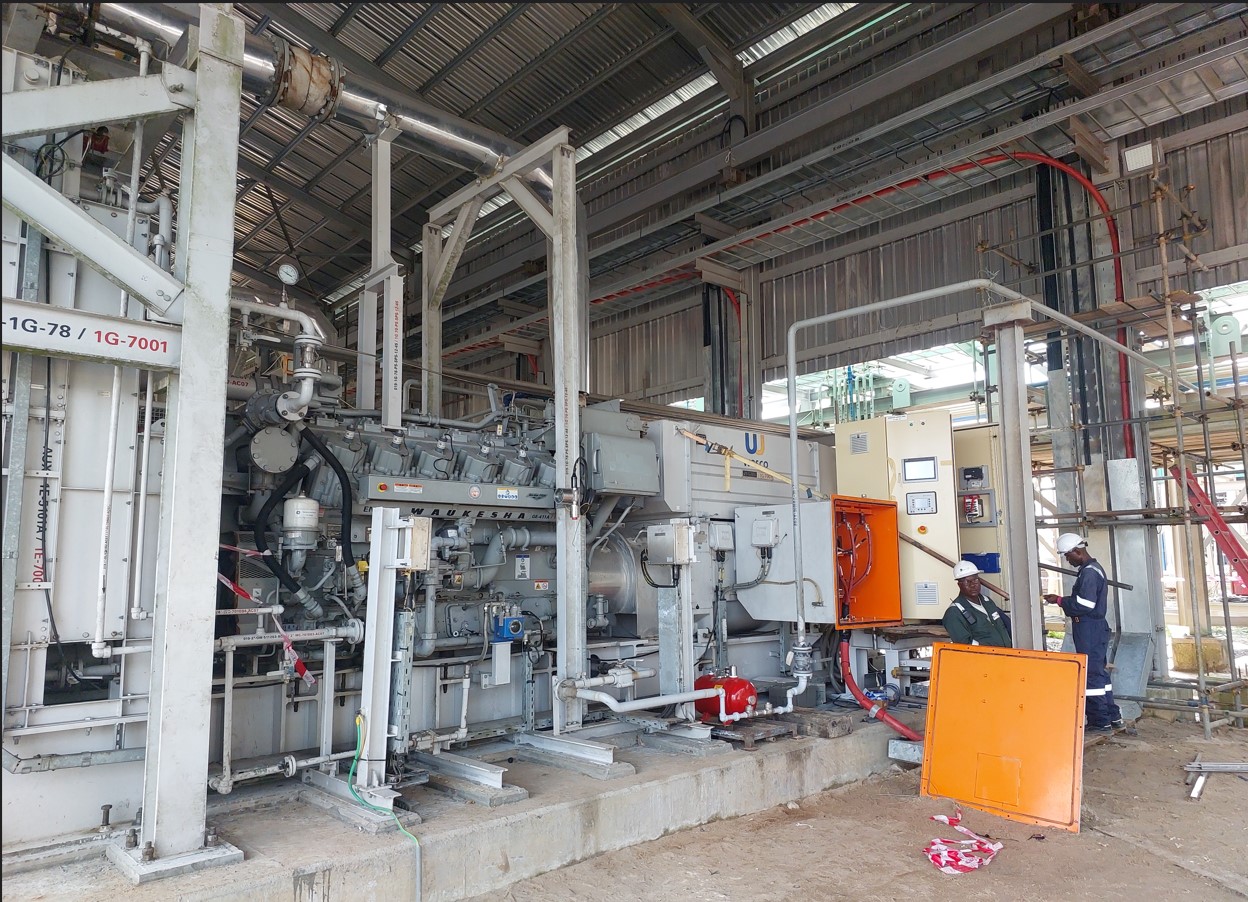

We delivered a comprehensive Power Management System (PMS) integration for a gas processing facility comprising 7 × 1270 kW, 3.3 kV gas generator units. This project involved integration of Generator Control Panels, Main Control Panel with redundant PLC architecture, bus synchronization systems, and comprehensive SCADA integration for centralized monitoring and control.
Project Scope & Complexity
The gas processing plant required a mission-critical power management system capable of handling multiple 1270 kW generators with high reliability and availability. The system needed to support automatic synchronization, load sharing, fault detection, and seamless switchover between generators. This was a complex integration involving multiple layers of control and communication.
System Components
Our solution included the following integrated components:
Generator Control Panels (GCP)
Individual panels for each generator featuring Woodward controller units, advanced protection relays, and automatic voltage regulator (AVR) systems for precise power quality control.
Main Control Panel (MCP)
Siemens S7-1500H redundant PLC architecture providing high availability with automatic failover capability. Engineered for continuous operation with zero downtime tolerance.
Bus Synchronization & Load Management
Advanced synchronization algorithms for seamless generator paralleling with automatic load sharing and frequency control across all 7 units.
SCADA Integration
Schneider Electric EcoStruxure Power SCADA Operation (PSO) for centralized monitoring, diagnostics, and historical data analysis.
Industrial Network Integration
Integration of Intelligent Electronic Devices (IEDs), MV/LV Variable Frequency Drives, and power meters via industrial Ethernet and Modbus protocols.
Key Features & Capabilities
- ✓ Redundant Architecture: High-availability PLC with automatic failover and hot standby capability
- ✓ Automatic Synchronization: Real-time phase, frequency, and voltage matching for seamless paralleling
- ✓ Load Sharing: Proportional load distribution across all 7 generators
- ✓ Fault Detection & Isolation: Multi-level protection with automatic generator isolation on fault
- ✓ Centralized Monitoring: Real-time dashboard with comprehensive system health indicators
- ✓ Predictive Maintenance: Trend analysis and early warning indicators for equipment issues
System Performance Metrics
- • System Availability: 99.8% uptime with redundant architecture
- • Synchronization Precision: ±0.1° phase angle, ±0.5 Hz frequency tolerance
- • Load Sharing Accuracy: ±2% across all generators
- • Fault Detection Time: <100ms for critical events
- • Data Retention: 24 months of historical data for analysis
Project Highlights
Generator Capacity: 7 × 1270 kW = 8.89 MW total
Voltage Rating: 3.3 kV medium voltage distribution
Platform: Siemens S7-1500H Redundant PLC with 50ms switchover time
SCADA: Schneider Electric EcoStruxure Power SCADA Operation
Execution: Zero production interruption during installation and commissioning
